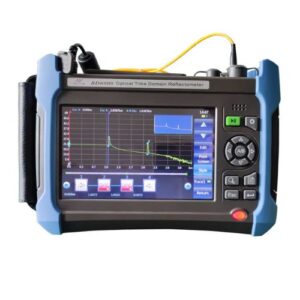

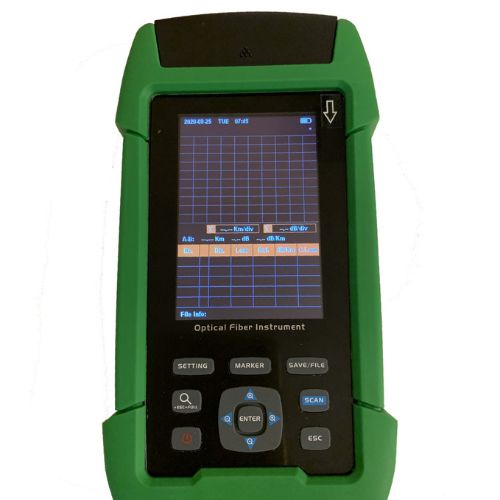

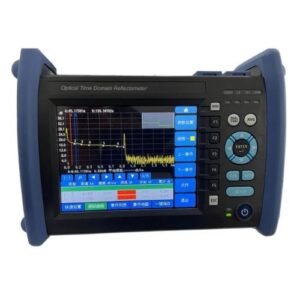

OTDR Optical Time Domain Reflectometer- Fiber Optic Tester
Original price was: KSh93,000.KSh87,000Current price is: KSh87,000.
The OTDR Optical Time Domain Reflectometer is a field-ready fiber testing device that helps telecom engineers and installers locate and diagnose fiber issues with accuracy. It supports dual-wavelength testing, automatic fault detection, and trace storage, making it an indispensable part of any fiber technician’s toolkit.
- Order now and receive your order within 48hrs
Overview
📡 OTDR Optical Time Domain Reflectometer – Precision Fiber Testing Tool
Ensure flawless fiber optic performance with the OTDR fiber optic tester, a must-have for network engineers and field technicians. Whether you’re installing new links or troubleshooting existing ones, this device provides crystal-clear insights into fiber integrity, pinpointing issues such as breaks, splices, and losses with extreme accuracy.
⚙️ How Does an OTDR Work?
The OTDR Optical Time Domain Reflectometer operates by sending a short laser pulse into the fiber. As the pulse travels, imperfections and changes in the fiber cause some light to scatter back toward the source. The OTDR detects this backscattered light and measures its intensity over time. Since the speed of light in the fiber is known, the time it takes for the backscattered light to return can be converted into distance, allowing the OTDR to create a trace or profile of the fiber’s condition along its length. QSFPTEK
🔹 Key Features for OTDR Optical Time Domain Reflectometer- Fiber Optic Tester
Detects breaks, splices, and bends with pinpoint accuracy across long fiber runs.
Dual-wavelength testing (typically 1310/1550nm) for comprehensive singlemode and multimode analysis.
Compact design with intuitive touchscreen interface for effortless navigation and real-time diagnostics.
Generates fiber traces, loss measurements, and distance estimations to key events.
Stores results internally or exports via USB for documentation and analysis.
🔹 Technical Specifications
| Specification | Details |
|---|---|
| Measurement Range | Up to 80 km |
| Wavelengths | 1310 nm / 1550 nm |
| Dynamic Range | 26 – 35 dB (depending on model) |
| Event Dead Zone | ≤ 1 m |
| Attenuation Dead Zone | ≤ 4 m |
| Display | 4.3” Color Touchscreen |
| Data Storage | Internal Memory / USB Export |
| Battery Life | Up to 10 hours |
| Weight | Approx. 1.5 kg |
| Applications | Installation, Maintenance, Troubleshooting |
🔹 Installation and Management of OTDR Optical Time Domain Reflectometer- Fiber Optic Tester
This OTDR is designed for immediate deployment with minimal training. Its user-friendly touchscreen, guided test modes, and built-in auto-analysis ensure fast setup and interpretation. Exporting data via USB allows for seamless integration into reports and long-term monitoring systems.
🛠️ Applications of OTDRs
Installation Verification: Ensuring that new fiber installations meet required standards.
Maintenance: Regularly checking fiber health to prevent potential issues.
Troubleshooting: Locating faults such as breaks or bends in the fiber.
Documentation: Creating a baseline trace for future comparisons.arXiv+5
🔗 Useful Links
Browse more fiber tools and compatible switches here
